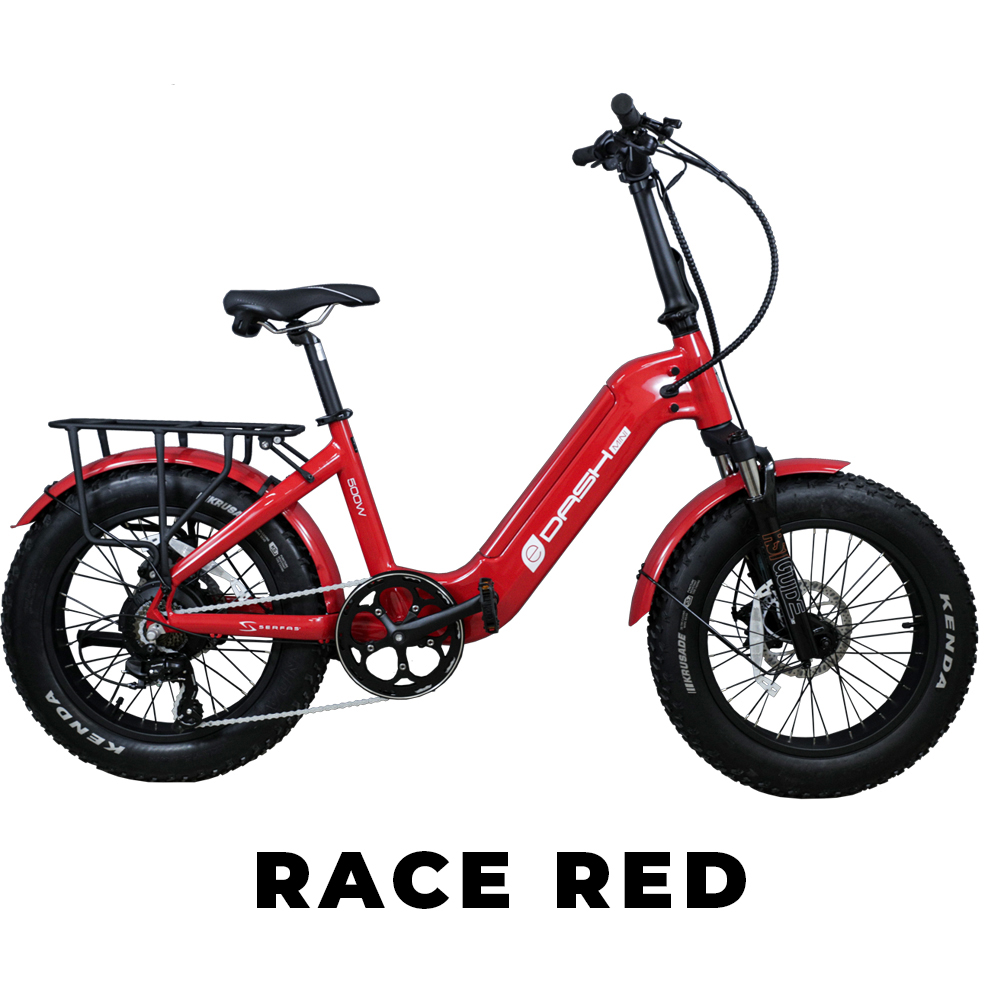

Serfas® – eDASH Mini 500W

Colors Available: Race Red

• Speed:
  • Pedal Assist: 20 mph

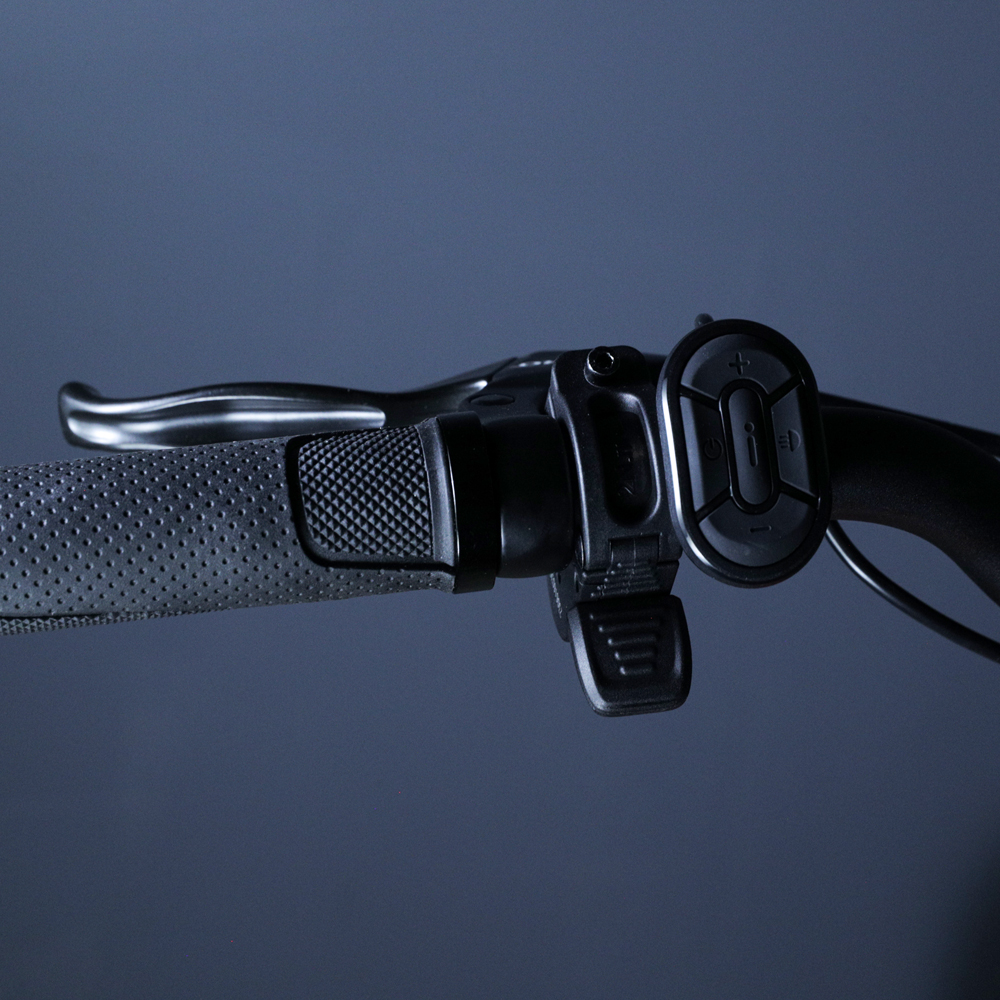

  • Throttle: 20 mph, Thumb Throttle (Class 2)

• Motor: 48V, 500 W brushless hub motor

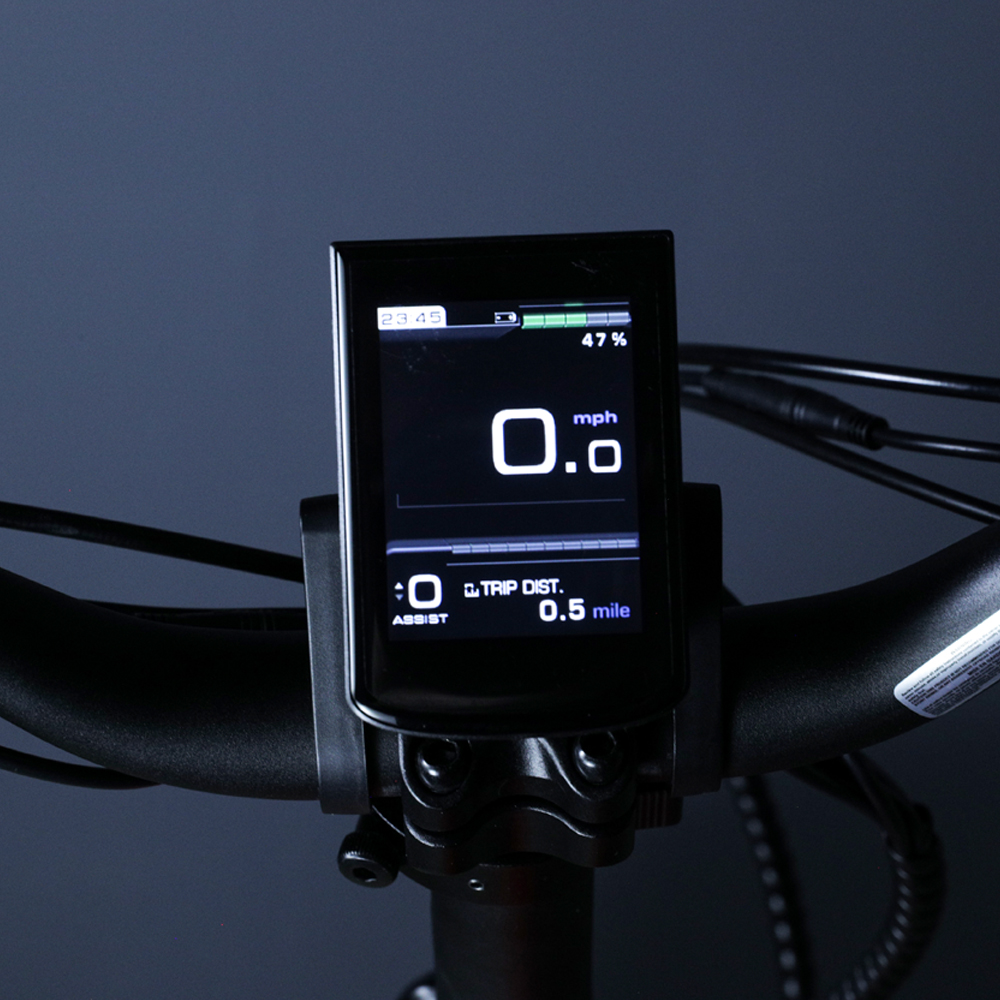

• Display: Backlit and Color LCD Smart Easy Read Display 3.1″ Screen
• Pedal Assist: 5 Levels
• Range: 25-55 Miles Assist dependent (ranges are based on a 165-pound rider on completely flat terrain.  Any increases in rider or cargo weight and or terrain will decrease range.)
• Battery: Removable Internal Lithium-ion 46.8V-13.6 Ah（636.4Wh） with LG Cells
• Lighting: Wired for Integrated Lighting.  (Lights not included)
• Frame: 6061 Single-Butted Aluminum Alloy with Internal Battery

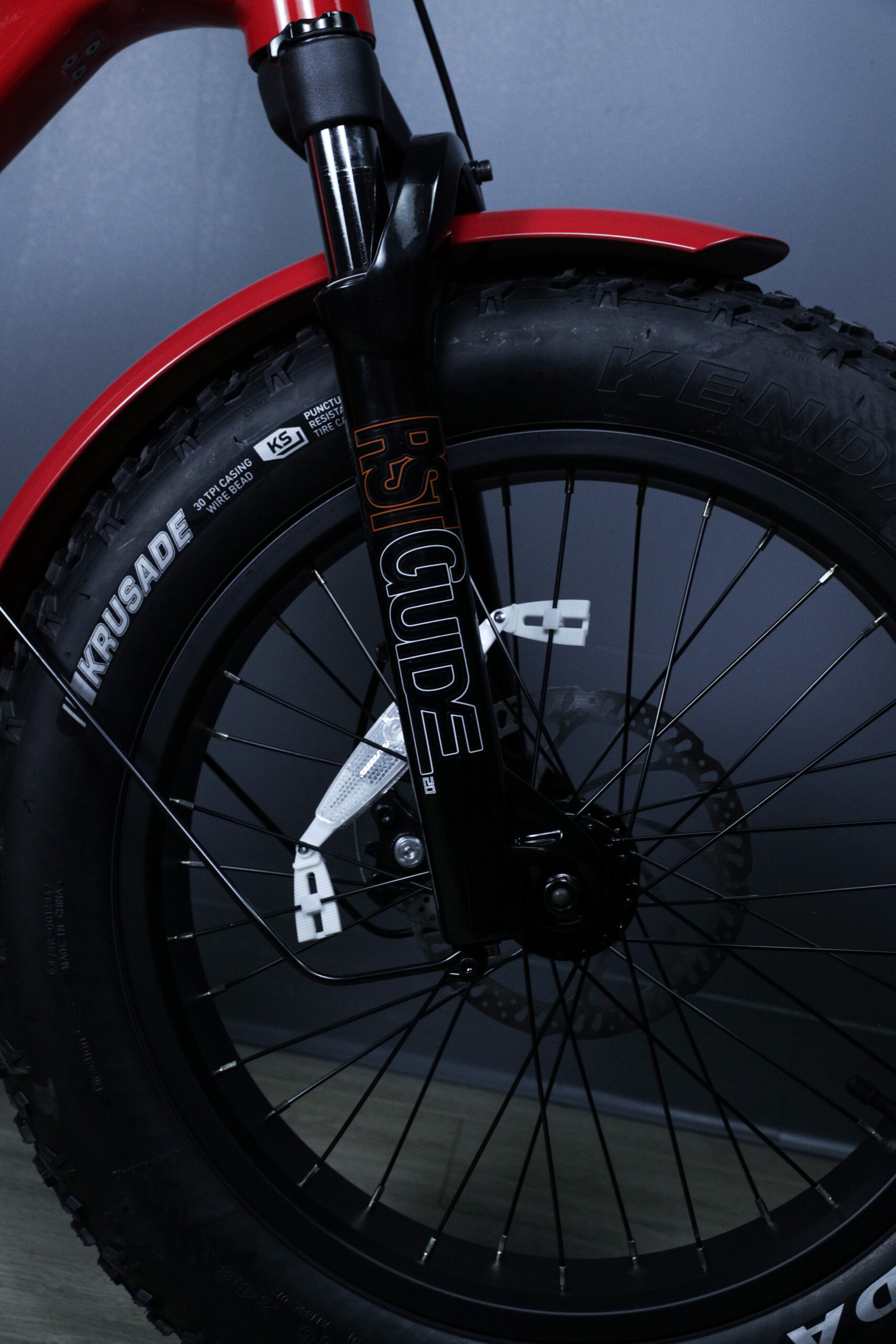

• Tires: KENDA K1188(Krusade)  20”X 4.0”
• Handlebar: Zoom VLG-776 Aluminum 25.4mm Diameter, 580mm Wide

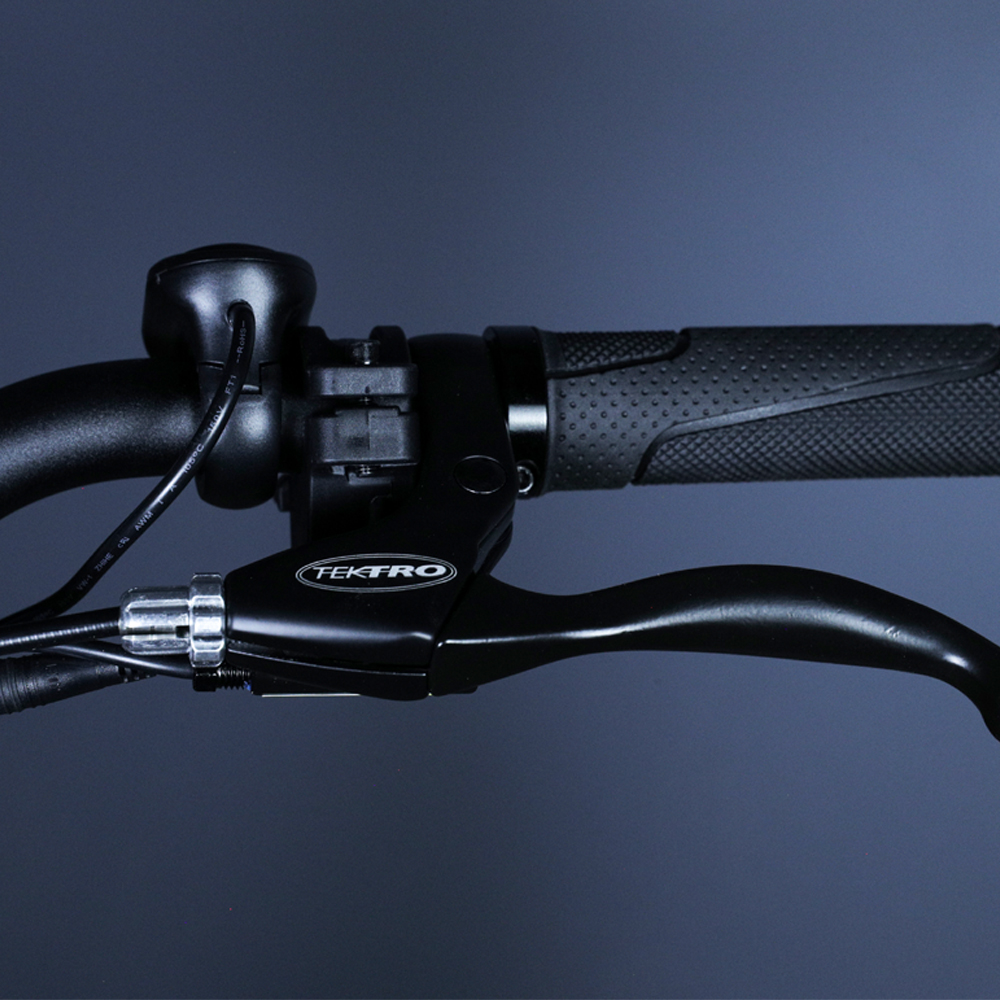

• Brakes: Tektro M280 Mechanical Disc Brakes, 180 mm Rotors

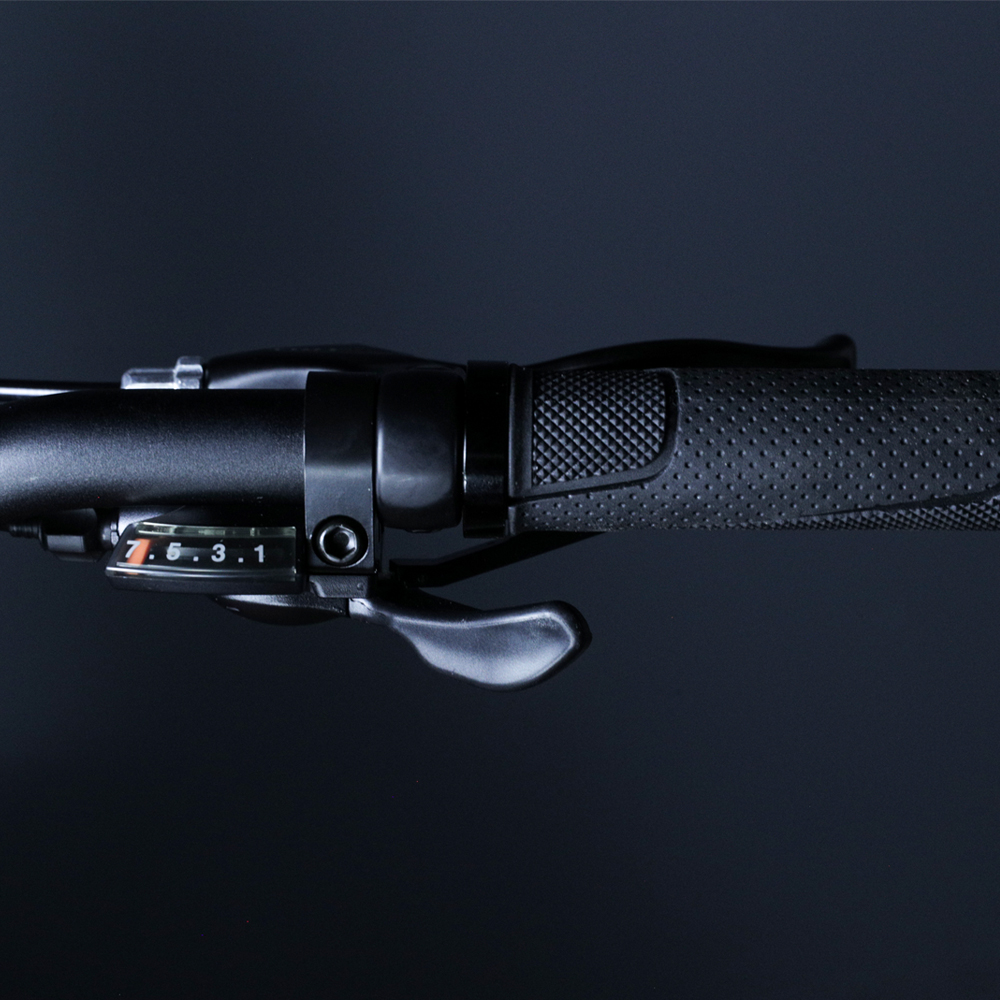

• Shifter: Shimano SL-M315-R, 7-Speed

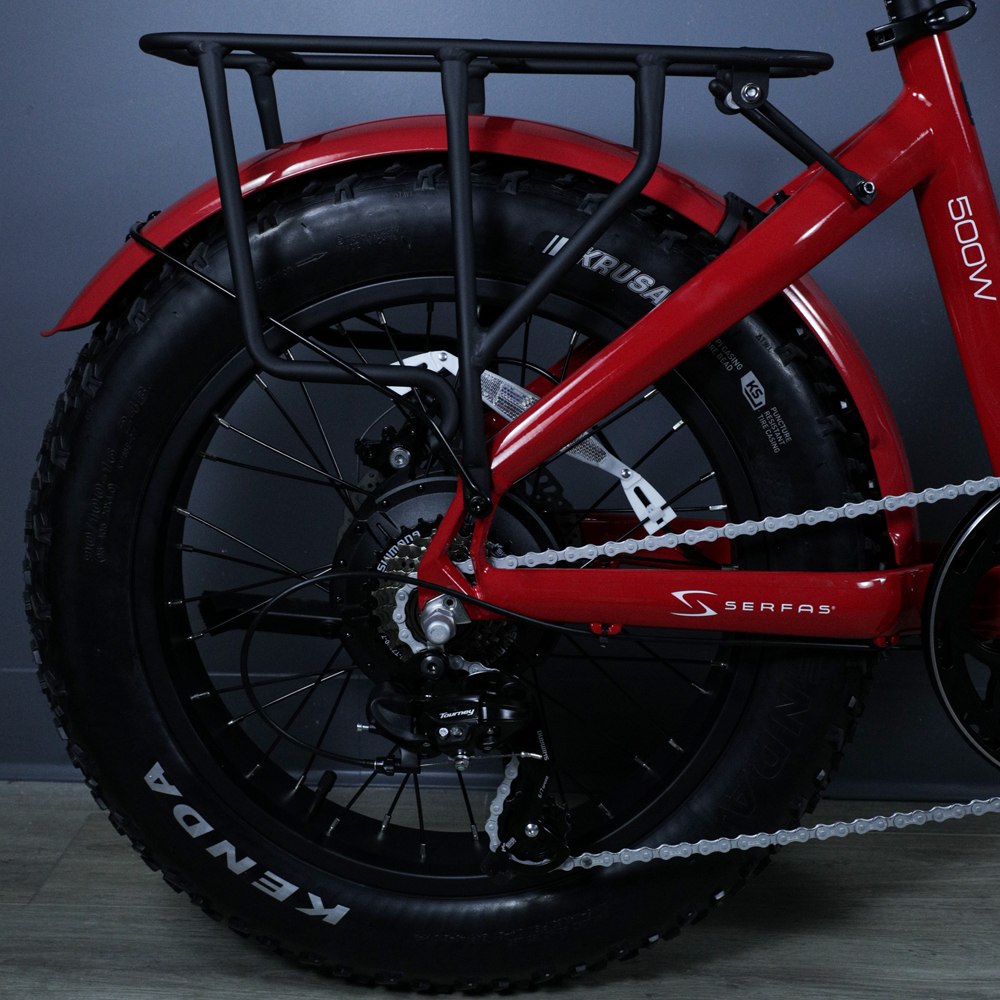

•  Derailleur: Shimano Acera RD-M360, 7-Speed
• Stem: Aluminum Threadless, 9-Degree, Folding Specific
• Weight: 70lbs
• Accessories: Fenders and Rear Rack Included

Click To View Serfas E-Bike Warranty Policy (PDF)

Click To View E-Bike Classification Guide (PDF)

Click To View Serfas eDash Mini Manual(2023) (PDF)

UL-2849 Certification
